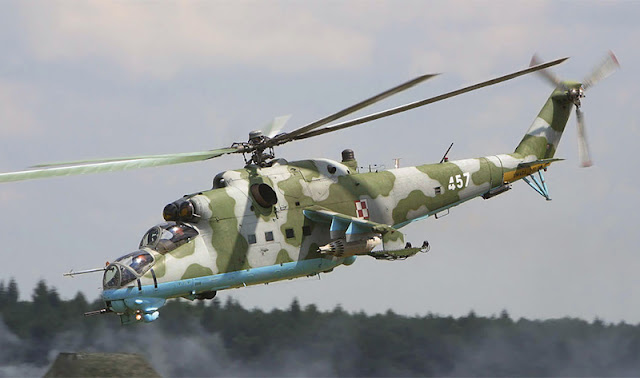

Mil Mi-24 Hind Helicopter
The Mil Mi-24 (Hind) is a large Russian helicopter gunship, attack helicopter and low-capacity troop transport with room for eight passengers. It is produced by Mil Moscow Helicopter Plant and has been operated since 1972 by the Soviet Air Force and its successors, along with more than 30 other nations.
In NATO circles, the export versions, Mi-25 and Mi-35, are denoted with a letter suffix as "Hind D" and "Hind E". Soviet pilots called the Mi-24 the "flying tank", a term used historically with the famous World War II Soviet Il-2 Shturmovik armored ground attack aircraft. More common unofficial nicknames were "Crocodile", due to the helicopter's camouflage scheme and "Drinking Glass", because of the flat glass plates that surround earlier Mi-24 variants' cockpits.
The core of the aircraft was derived from the Mil Mi-8 with two top-mounted turboshaft engines driving a mid-mounted 17.3 m five-blade main rotor and a three-blade tail rotor. The engine configuration gave the aircraft its distinctive double air intake. Original versions have an angular greenhouse-style cockpit; Model D and later have a characteristic tandem cockpit with a "double bubble" canopy. Other airframe components came from the Mi-14 "Haze". Two mid-mounted stub wings provide weapon hardpoints, each offering three stations, in addition to providing lift. The loadout mix is mission dependent; Mi-24s can be tasked with close air support, anti-tank operations, or aerial combat.
The Mi-24 fuselage is heavily armored and can resist impacts from 12.7 mm (0.50 in) rounds from all angles. The titanium rotor blades are also resistant to 12.7 mm rounds. The cockpit is protected by ballistic-resistant windscreens and a titanium-armored tub. The cockpit and crew compartment are overpressurized to protect the crew in NBC conditions.
As a combination of armoured gunship and troop transport, the Mi-24 has no direct NATO counterpart. While the UH-1 ("Huey") helicopters were used in the Vietnam War either to ferry troops, or as gunships, they were not able to do both at the same time. Converting a UH-1 into a gunship meant stripping the entire passenger area to accommodate extra fuel and ammunition, and removing its troop transport capability. The Mi-24 was designed to do both, and this was greatly exploited by airborne units of the Soviet Army during the 1980–89 Soviet–Afghan War. The closest Western equivalent was the Sikorsky S-67 Blackhawk, which used many of the same design principles and was also built as a high-speed, high-agility attack helicopter with limited troop transport capability. More details
In NATO circles, the export versions, Mi-25 and Mi-35, are denoted with a letter suffix as "Hind D" and "Hind E". Soviet pilots called the Mi-24 the "flying tank", a term used historically with the famous World War II Soviet Il-2 Shturmovik armored ground attack aircraft. More common unofficial nicknames were "Crocodile", due to the helicopter's camouflage scheme and "Drinking Glass", because of the flat glass plates that surround earlier Mi-24 variants' cockpits.The core of the aircraft was derived from the Mil Mi-8 with two top-mounted turboshaft engines driving a mid-mounted 17.3 m five-blade main rotor and a three-blade tail rotor. The engine configuration gave the aircraft its distinctive double air intake. Original versions have an angular greenhouse-style cockpit; Model D and later have a characteristic tandem cockpit with a "double bubble" canopy. Other airframe components came from the Mi-14 "Haze". Two mid-mounted stub wings provide weapon hardpoints, each offering three stations, in addition to providing lift. The loadout mix is mission dependent; Mi-24s can be tasked with close air support, anti-tank operations, or aerial combat.
The Mi-24 fuselage is heavily armored and can resist impacts from 12.7 mm (0.50 in) rounds from all angles. The titanium rotor blades are also resistant to 12.7 mm rounds. The cockpit is protected by ballistic-resistant windscreens and a titanium-armored tub. The cockpit and crew compartment are overpressurized to protect the crew in NBC conditions.As a combination of armoured gunship and troop transport, the Mi-24 has no direct NATO counterpart. While the UH-1 ("Huey") helicopters were used in the Vietnam War either to ferry troops, or as gunships, they were not able to do both at the same time. Converting a UH-1 into a gunship meant stripping the entire passenger area to accommodate extra fuel and ammunition, and removing its troop transport capability. The Mi-24 was designed to do both, and this was greatly exploited by airborne units of the Soviet Army during the 1980–89 Soviet–Afghan War. The closest Western equivalent was the Sikorsky S-67 Blackhawk, which used many of the same design principles and was also built as a high-speed, high-agility attack helicopter with limited troop transport capability. More details
